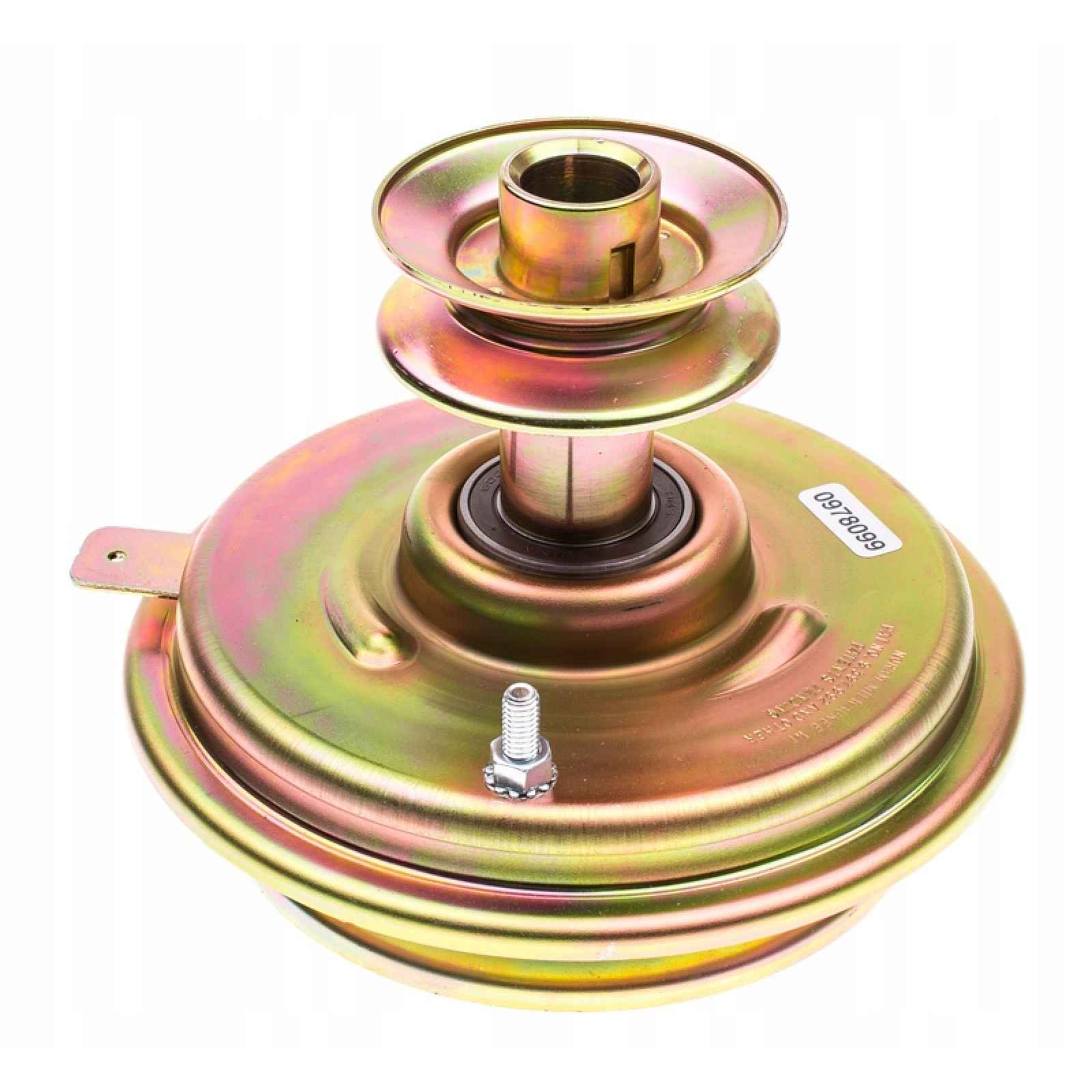

Spojka traktoru Mtd Cub Cadet Massey 717-1788 A 753-06347 až 2010

Značka: MTD

4 618 Kč

Skladem Do obchodu

Allegro

Pro zahradní traktory: MTD MASTER CUT WOLF GARTEN OLEO-MAC GARTENLAND EFCO BLACK EDITION VERTS LOISIRS CUB CADET MASSEY FERGUSON GUTBROD. Celý popis ↓

Parametry

Značka:

MTD

Popis Spojka traktoru Mtd Cub Cadet Massey 717-1788 A 753-06347 až 2010

Spojka traktoru MTD NEJVYŠŠÍ KVALITY.

Původní číslo – 717-1788A, 717-1788B, 717-1788, 753-06347, 717-04743, 717-04198.

ROZMĚRY

Celková výška – 165 mm
Vnější průměr – 216 mm
Vnější průměr hnacího řemenice – 90 mm
Vnější průměr předávacího řemenu – 170 mm
Hloubka hřídele – 81 mm
Průměr hřídele – 25,4 mm

PASUJE PRO

Traktorky vyrobené do roku 2010
KOLUMBIE
T 516 Č. / 13BT516N597 (2003) / Engine pulley
GUTBROD
GLX 105 RH / 13BV516N690 (2005) / Engine pulley
GLX 105 RH / 13BX516N690 (2006) / Engine pulley
GLX 105 RH / 13BX516N690 (2007) / Engine pulley
GLX 105 RH / 13CX516N690 (2008) / Engine pulley
GLX 105 RH / 13AV51GN490 (2009) / Engine pulley
GLX 105 RH / 13AV51GN690 (2009) / Engine pulley
GLX 105 RHL / 13AT516N690 (2002) / Engine pulley
GLX 105 RHL / 13BT516N690 (2003) / Engine pulley
GLX 105 RHL / 13BT516N690 (2004) / Engine pulley
GLX 105 RHL / 13BE516N690 (2005) / Engine pulley
GLX 105 RHL / 13BP516N690 (2006) / Engine pulley
GLX 105 RHL / 13BT516N690 (2006) / Engine pulley
GLX 105 RHL / 13BP516N690 (2007) / Engine pulley
GLX 105 RHL / 13BT516N690 (2007) / Engine pulley
GLX 105 RHL-K / 13BI516N690 (2004) / Engine pulley
GLX 105 RHL-K / 13BI516N690 (2005) / Engine pulley
GLX 105 RHL-K / 13BI516N690 (2006) / Engine pulley
GLX 105 RHL-K / 13BI516N690 (2007) / Engine pulley
GLX 105 RHL-K / 13BG516N690 (2008) / Engine pulley

Zobrazit celý popis

GLX 105 RHL-K / 13AG51GN490 (2009) / Engine pulley

717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 105 RHL-K / 13AG51GN690 (2009) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 105 RHL-SK / 13BF516N690 (2008) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 105 RHL-SK / 13AF51GN490 (2009) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 105 RHL-SK / 13AF51GN690 (2009) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 107 SHL / 13BT516G690 (2003) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 122 RHL / 13AT516J690 (2004) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 122 RHL / 13AU516J690 (2004) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 122 RHL / 13AP516J690 (2005) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 122 RHL / 13AE516J690 (2008) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 122 RHL-SK / 13AI516J690 (2008) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 122 RHL-SK / 13AI51GJ490 (2009) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 122 RHL-SK / 13A-516J690 (2009) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RH / 13CH516E690 (2005) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RH / 13CM516E690 (2005) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RH / 13CV516E690 (2006) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RH / 13CV516E690 (2007) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RH / 13DV516E690 (2008) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RH / 13AV51GE490 (2009) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RH / 13AV51GE690 (2009) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RHL / 13AD516E690 (2002) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RHLK / 13BI516E690 (2003) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RHLK / 13CI516E690 (2004) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RHLK / 13CI516E690 (2005) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RHLK / 13CI516E690 (2006) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RHLK / 13CI516E690 (2007) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RHLK / 13CG516E690 (2008) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RHLK / 13AG51GE490 (2009) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 RHLK / 13AG51GE690 (2009) / Engine pulley
717-1788A / CLU:HYDRO:BRC // Gutbrod / Lawn tractors / GLX 92 SHL / 13BT516I690
