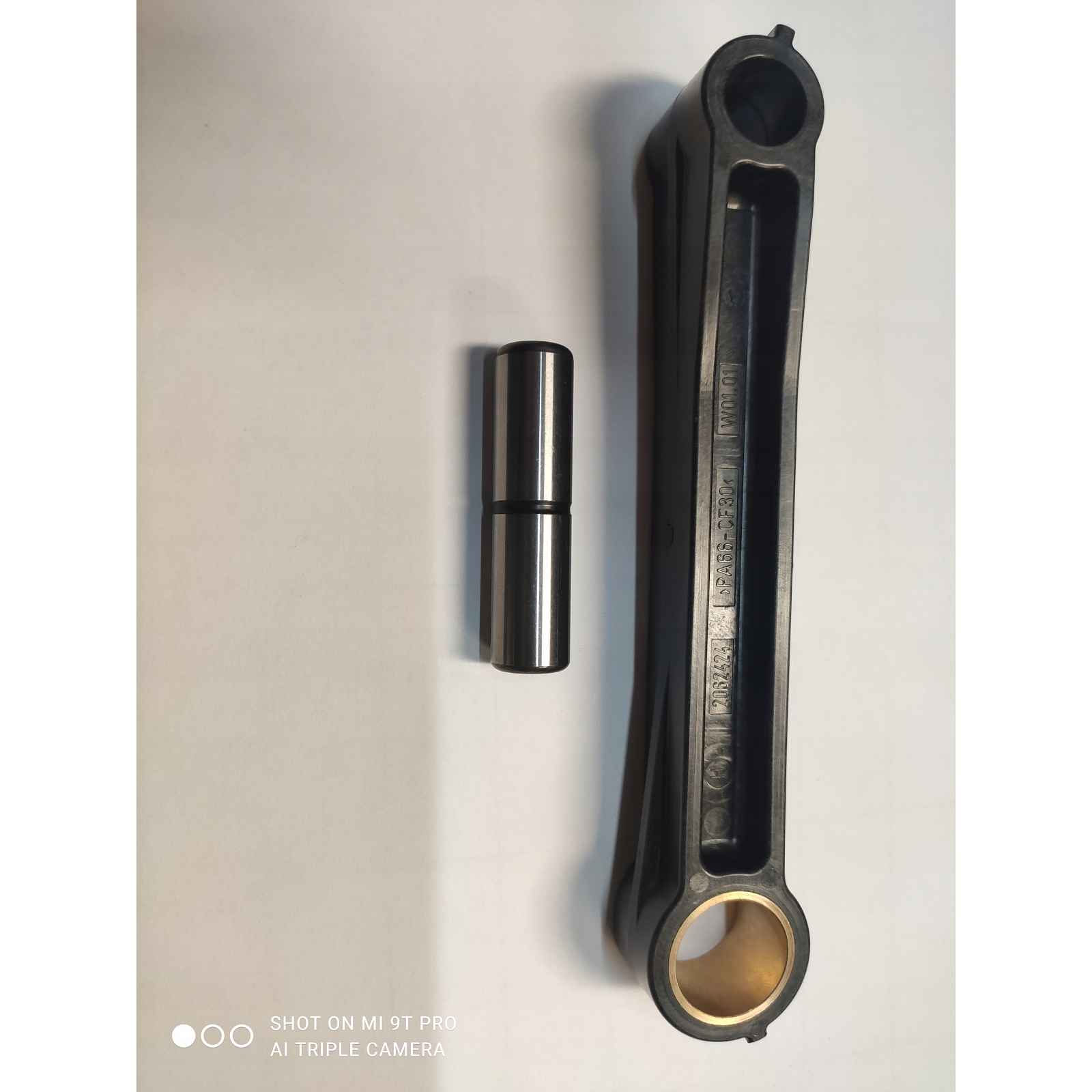

Rameno klikové hřídele pro elektrické demoliční kladivo Kód výrobce: 2062819 Položka ve schématu: č. 37Seznam dílů 1 429781 2,000 PC Casing red packed 2 209296 19,000 PC Taptite screw 2000 SN40 6X18ST - gal ZnFe5F +Deltacoll schw 3 278673 4,000 PC Taptite screw II SN40 6X30A2-70 - gal ZnFe5F +Deltacoll s 4 2049658 2,000 PC Axle 2 5 209093 2,000 PC Compression spring 2x12,5x105 6 209298 8,000 PC Taptite screw 2000 SN40 6X709.8 - gal ZnFe5F +Deltacoll sch 7 2061054 4,000 PC Washer 6,4x30x3 8 241420 4,000 PC Torx-soc cap šroub M6X10 mc8.8 - A2KSpedcaps 80 9 345820 1,000 PC adaptér pece 10 2131326 2,000 PC Rating plate TE 3000-AVR 230V ZA 11 209233 1,000 PC Adhesive label 108 dB 12 209123 1,000 PC Grip vpravo 13 209122 1,000 PC Grip left 14 209141 2,000 PC End brace 15 345548 4,000 PC Threaded stud M10 x 344 16 2035596 4,000 PC Nut+washer kit 17 2020124 4,000 PC Retaining washer Nordlock NL121.7182 - FLZN 18 209085 1,000 PC O-kroužek 134,5x4,5NBR 70, černá barva 19 209096 1,000 PC Housing end cap 20 2029152 1,000 PC Chuck TE 3000-AVR packed 21 345581 2,000 PC absorbérový kroužek 22 2034043 1,000 PC Latch clamp 2 TE 3000-AVR finpt 23 345736 1,000 PC Eccentric pin 24 345604 1,000 PC Scraper ring 25 345730 1,000 PC Stop vpravo 26 345729 1,000 PC Stop left 27 26359 2,000 PC Pan head screw M6X16 mc8.8 - brüniert- Spedagogy 85 28 345602 2,000 PC Insert St – 6kt 29 2046998 1,000 PC absorbér 30 2035597 1,000 PC Servicing set TE 3000-AVR 31 2066353 1,000 PC Guide tube TE 3000-AVR packed 32 414417 1,000 PC Ram TE 3000 balení 33 2046997 1,000 PC Washer B 34 2085204 1,000 PC Stop balení 35 2041350 1,000 PC Striker piston TE 3000-AVR packed 36 429785 1,000 PC Guide ring TE 3000 packed 37 2062819 1,000 PC Conrod mach 38 345580 1,000 PC Drive piston finpt 39 208751 1,000 PC Clevis pin 40 265886 1,000 PC O-kroužek 49X2NBR 50 41 2047242 1,000 PC absorbér 42 414412 1,000 PC Eccentric TE 3000 packed 43 423081 1,000 PC Ball bearing set 44 72421 1,000 PC Circlip 35X1.5FED-ST - 45 2085205 1,000 PC Seal holder packed 46 209094 2,000 PC Spring Guide AVR 47 414414 1,000 PC Toothed gear z=62 TE 3000 set 48 414415 1,000 PC Bearing cover TE 3000 assy packed 49 209180 2,000 PC Centering bushing 50 209084 1,000 PC Seal 51 414413 1,000 PC Gear spindle TE 3000 packed 52 208655 1,000 PC Grooved ball bear. 15X42X13-2Z6302-2Z 53 209115 2,000 PC absorbér 54 209181 1,000 PC držák 57 414407 1,000 PC Gear housing TE 3000 packed 58 209092 4,000 PC Bushing 10x12x18x17 59 209049 1,000 PC Sleeve 60 414409 1,000 PC Rotor TE 3000 packed 61 208681 1,000 PC Cooling fan VZ=17 62 341146 1,000 PC Insulating washer 63 366158 1,000 PC Grooved ball bear. 8X22X7-2RS608-2RS 64 208771 1,000 PC Rotační vyšívací stroj BAUMX27-25x40x5 65 208772 1,000 PC Ball bearing 20x47x146204-2RS 66 76460 1,000 PC Circlip J47 67 59665 1,000 PC Circlip 20X1.2FED-ST - PHOSPHAT. &GEÖLT 68 414411 1,000 PC Stator TE 3000 balení 69 209051 1,000 PC Air deflector 70 209061 1,000 PC Motorový housing 71 275057 2,000 PC RF šroub SN165 5X75/3512.9 - brüniert 72 206145 1,000 PC O-kroužek 21.3X2.4NBR 70:' 73 234227 1,000 PC Compression spring 21,65x5,4 74 268225 2,000 PC Washer 5.3140 HV - A2K 76 429782 2,000 PC Casing black packed 77 209186 1,000 PC Lid right 78 209299 12,000 PC Torx-soc re scr SN65 5X189.8 - FeZn5F +2xDeltacoll schwa 79 211509 1,000 PC Lid AVR printed 80 278312 4,000 PC Torx-soc re scr SN65 4X12A2-70 82 209150 4,000 PC Bushing 10x20x26 95 Shore 83 425436 4,000 PC Torx-soc re scr SN65 6X309.8 - FeZn5F +2xDeltacoll schwa 89 429783 2,000 PC Bow packed 90 345549 4,000 PC Spring Cellasto 91 209257 1,000 PC Cover cap 92 209275 1,000 PC Setting lever prea 93 275589 1,000 PC
Parametry
| Značka: | Hilti |
